SWISH: A shifting-weight interface of simulated hydrodynamics for haptic perception of virtual fluid vessels
Mixed-Reality Haptic Interface

Publication
Shahabedin Sagheb, Frank Wencheng Liu, Alireza Bahremand, Assegid Kidane, Robert LiKamWa
SWISH: A Shifting-Weight Interface of Simulated Hydrodynamics for Haptic Perception of Virtual Fluid Vessels
In Proceedings of UIST'19.


Abstract

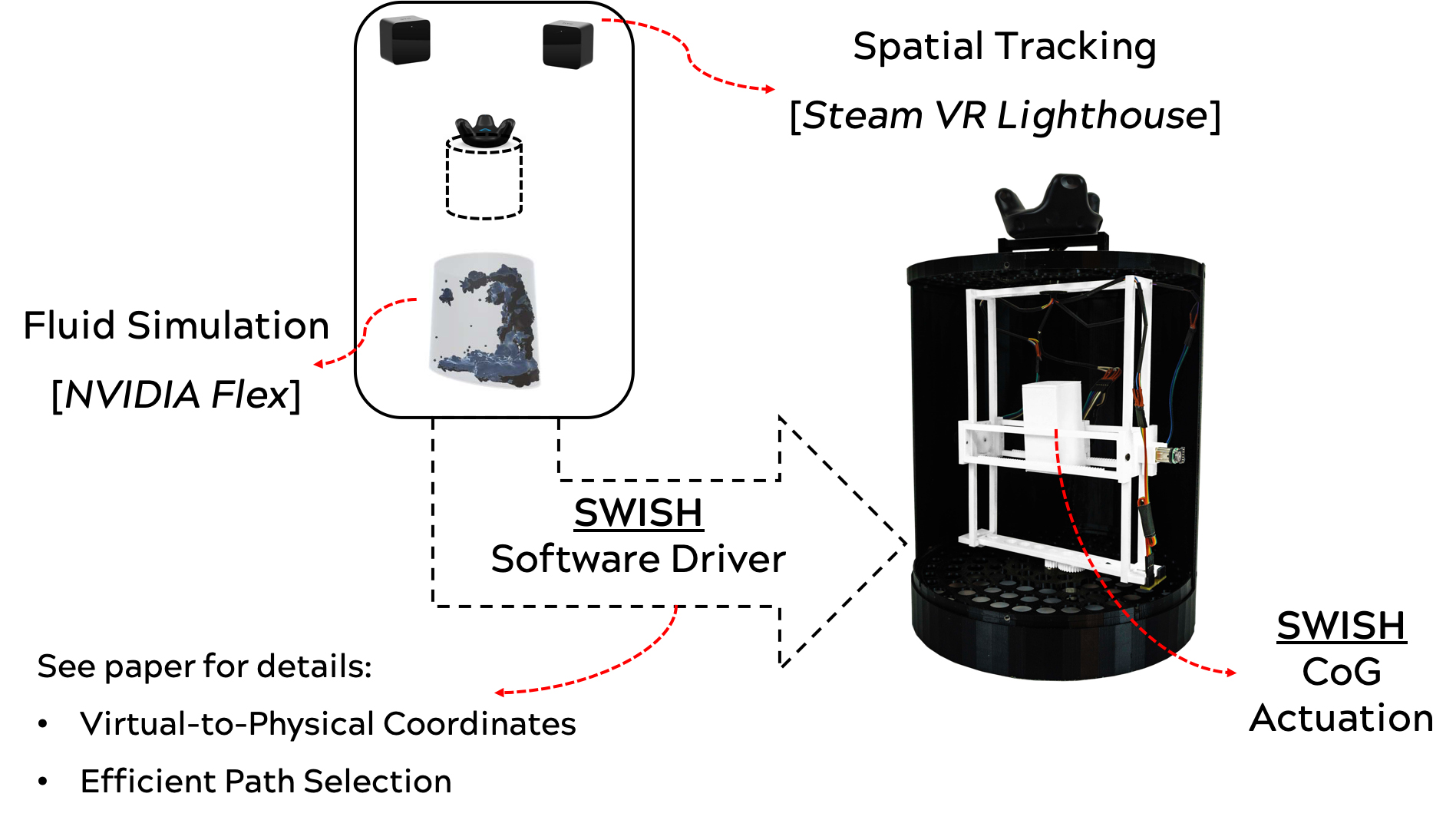

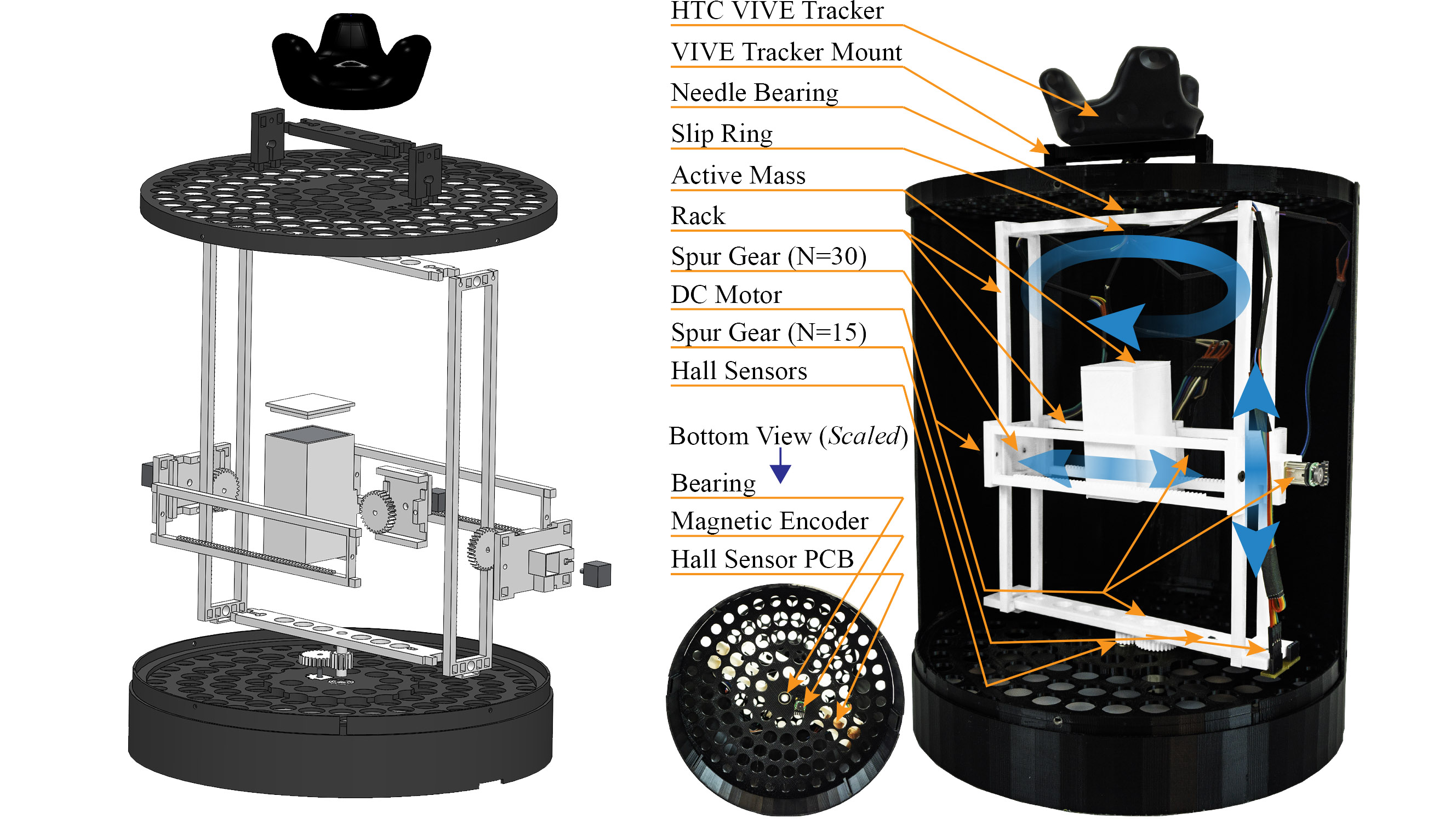

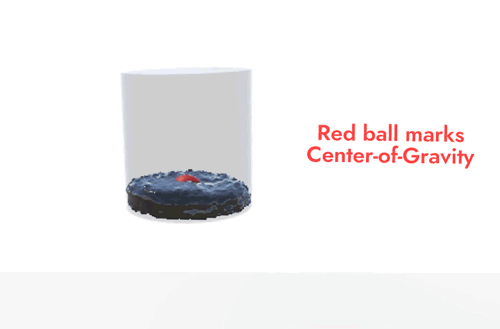

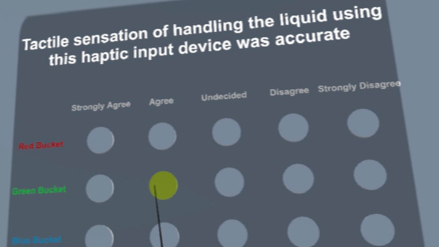

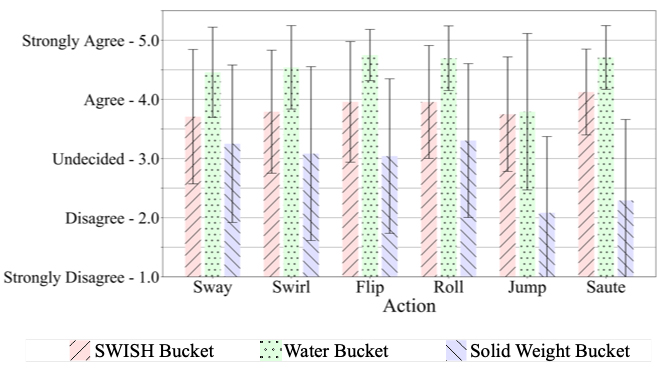

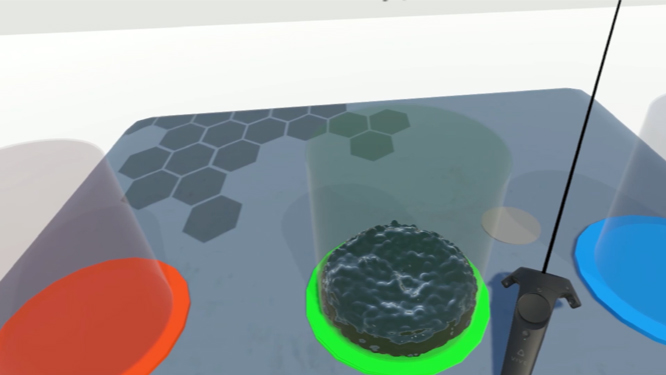

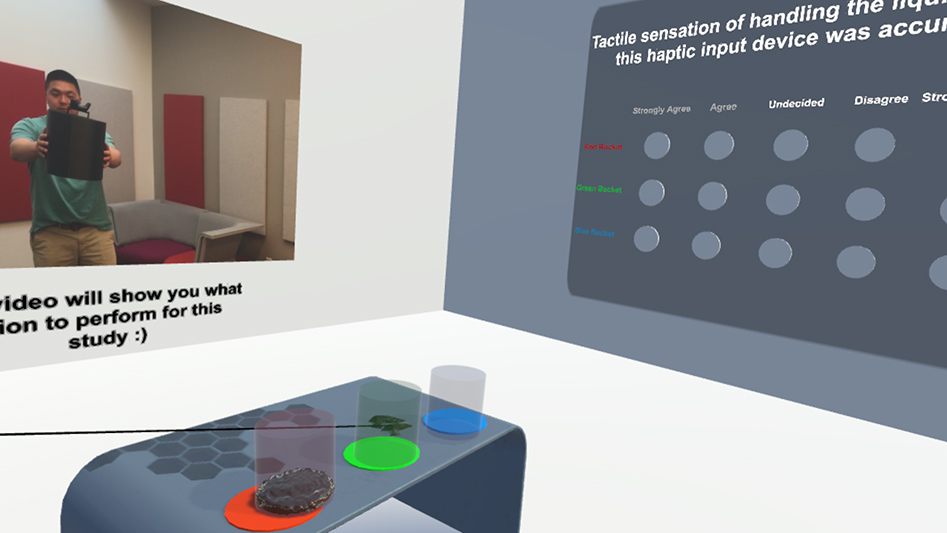

Current VR/AR systems are unable to reproduce the physical sensation of fluid vessels, due to the shifting nature of fluid motion. To this end, we introduce SWISH, an ungrounded mixed-reality interface, capable of affording the users a realistic haptic sensation of fluid behaviors in vessels.The chief mechanism behind SWISH is in the use of virtual reality tracking and motor actuation to actively relocate the center of gravity of a handheld vessel, emulating the moving center of gravity of a handheld vessel that contains fluid. In addition to solving challenges related to reliable and efficient motor actuation, our SWISH designs place an emphasis on reproducibility, scalability, and availability to the maker culture. Our virtual-to-physical coupling uses Nvidia Flex's Unity integration for virtual fluid dynamics with a3D printed augmented vessel containing a motorized mechanical actuation system.To evaluate the effectiveness and perceptual efficacy of SWISH, we conduct a user study with 24 participants, 7 vessel actions, and 2 virtual fluid viscosities in a virtual reality environment. In all cases, the users on average reported that the SWISH bucket generates accurate tactile sensations for the fluid behavior. This opens the potential for multi-modal interactions with programmable fluids in virtual environments for chemistry education, worker training, and immersive entertainment.
